G M COUNTER

USE: To measure the intensity of the Radioactive radiations.

PRINCIPLE: Ionisation produced in the gas by nuclear radiations .

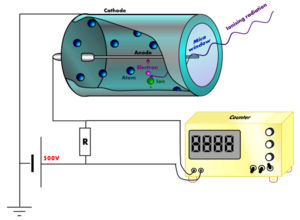

CONSTRUCTION:
* A metal tube with glass envelope (C) act as cathode.

*A fine tungsten wire (W) along the axis of the tube, act as anode.

* GM tube insulated from the wire is filled with an inert gas like argon at a low pressure.

* The radiations enter through a window (E) made of thin mica sheet.



*About 1000 volt is applied through a high resistance R (100 M ohm)


WORKING:

* Due to primary ionisations few ions produced are  accelerated by high potential difference .

* These ions/electrons cause further ionisation and due to collisions, avalanche of electrons are produced.

* These electrons reaching the anode produces a current pulse.

* A high potential difference developed across R is amplified and operates an electronic counter.


* The counts in the counter is directly proportional to the Intensity of Ionising radiations.


* Ionisation of the gas does not depend on type of Incident radiations.


* Wilson's Cloud Chamber ,a particle detector records the visual observations of the tracks of charged particles.



J.J.THOMSON METHOD TO FIND e/m :

ENLARGE BY CLICKING

LONG SOLENOID

MAGNETIC INDUCTION DUE TO A LONG SOLENOID CARRYING CURRENT:

ENLARGE BY CLICKING

CYCLOTRON

ENLARGE BY CLICKING

ENLARGE BY CLICKING

CIRCULAR COIL

ENLARGE BY CLICKING

ENLARGE BY CLICKING

MILLIKAN OIL DROP

ENLARGE BY CLICKING

ROBERT MILLIKAN,MARCH 22,1868

ENLARGE BY CLICKING

ENLARGE BY CLICKING

ENLARGE BY CLICKING

ENLARGE BY CLICKING

YOUNG'S DOUBLE SLIT

ENLARGE BY CLICKING

thomas young,june 13,1773

ENLARGE BY CLICKING

ENLARGE BY CLICKING

ENLARGE BY CLICKING

EFFECT OF FREQUENCY

NOTE: ENLARGE BY CLICKING

GRAPH,2

VAN DE GRAAFF

VAN DE GRAAFF GENERATOR:

PRINCIPLE:

  *IT WORKS ON THE PRINCIPLE OF ELECTROSTATIC INDUCTION AND ACTION OF POINTS.

CONSTRUCTION:

 * 'A' BE THE HOLLOW METALLIC SPHERE MOUNTED ON INSULATING PILLARS.

 * 'B' AND 'C' BE THE TWO PULLEYS.'B' IS MOUNTED AT THE CENTRE OF THE SPHERE AND 'C' IS MOUNTED NEAR THE BOTTOM.


 * PULLEY 'C' IS DRIVEN BY AN ELECTRIC MOTOR.


 *A SILK BELT MOVES OVER THE PULLEYS.

 *'D' AND 'E' BE THE TWO COMB SHAPED CONDUCTORS HAVING SHARP NEEDLES WHICH ARE MOUNTED NEAR THE PULLEYS.


 *COMB 'D' IS GIVEN A POSITIVE POTENTIAL (10^4 V) BY A POWER SUPPLY.


 *COMB 'E' IS CONNECTED TO THE INNER SIDE OF THE HOLLOW SPHERE.

WORKING:

 *SINCE HIGH ELECTRIC FIELD IS AT 'D' AIR GETS IONISED DUE TO ACTION OF POINTS.

 *NOW THE NEEDLE ATTRACTS NEGATIVE CHARGES AND REPELS POSITIVE CHARGES TOWARDS THE BELT.

 *THE POSITIVE CHARGES STICK TO THE BELT, MOVES UP AND REACHES 'E'.


 *'E' ACQUIRES NEGATIVE CHARGES DUE TO ELECTROSTATIC INDUCTION AND SPHERE ACQUIRES POSITIVE CHARGES  WHICH ARE DISTRIBUTED ON ITS OUTER SURFACE.

  *THE HIGH ELECTRIC FIELD AT 'E' IONISES THE AIR AND HENCE NEGATIVE CHARGES ARE REPELLED TOWARDS THE BELT.


 *DUE TO THIS THE POSITIVE CHARGES ARE NEUTRALISED BEFORE THE BELT MOVES OVER THE PULLEY.

 *SO THE DESCENDING BELT IS LEFT UNCHARGED.


 *THE POTENTIAL OF THE  SPHERE KEEPS ON INCREASING AND REACHES A MAXIMUM OR LIMITING VALUE.


 *AFTER THIS STAGE LEAKEGE OF CHARGES OCCUR DUE TO IONISATION OF AIR.

ROBERT J.VAN DE GRAAFF

 *THIS LEAKAGE CAN BE REDUCED BY ENCLOSING  THE MACHINE IN A GAS FILLED STEEL CHAMBER AT A VERY HIGH PRESSURE.

USES:

 *USED TO PRODUCE LARGE ELECTROSTATIC POTENTIAL DIFFERENCE UP TO 10^7  V.

 *THIS HIGH VOLTAGE IS USED TO ACCELERATE THE POSITIVE IONS (PROTONS,DEUTRONS ) FOR NUCLEAR FISSION PROCESS.
